BEC 金属包覆垫系列 （Metal）Enveloped Gaskets Systems |
| |
|
| |
|
| |
|
| |
包覆垫片BPG101系列
构成：不同材料的垫片，如GN、GC、GPD等作为内芯外面由不同的金属用不同的方法完全包覆，垫片两面还可粘附石墨或四氟等。

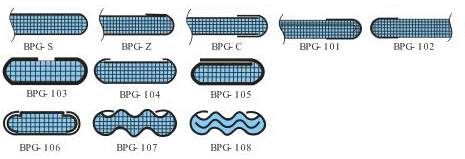

ERS-GM100/ S、E、C系列金属包覆垫部分形式： |
| |
|
| |
 |
| |
|
| |
A) 104双包垫BPG/M-104 104 Double-jacketed gaskdt |
| |
双面包覆双包垫，采用金属薄板将软垫料完全包覆，这使垫片给法兰以额外的支撑和回弹，使得该垫片能广泛地使用于各种不同的工况和法兰连接，并能用于换热器密封等。
Double jacketed gaskets, they are used when complete protection of the filler material is required, also provide additional support of the flange at the outer edge by addition of lapped-over jacket,104 is constrcted of a soft filler complerly enclosed by a metal shell and top washer.
The additional thickness of the outer lap is helpful in preventing excessive destortion of light-weigh flanges |
| |
|
| |
B)106双壳双包垫BPG-M-106 106 Double shell double jacketed gasket |
| |
用上、下金属壳罩把软垫料包覆在金属壳之中，具有很高的强度和刚性。由于该垫片具有很高的强度和刚度，故被大量应用于高温，高压的密封部位，并适用于制作大型的垫片，换热器垫片等，以便于垫片的搬运安装等。应用范围最为广泛。
Double dhell, double jacketed gaskets,they are usde when a gasket having greater strength and rigidith are required, they are made of a soft filler encased by two reversed and overlapping metal shells. |
| |
|
| |
C)107波纹包覆垫BPG-M-107 Corrugated jacketed gasket |
| |
波纹垫增加了垫片的回弹性，提高了密封作用。同时压制波纹还增强了垫片的刚性，如在垫片两表面粘贴旧BEC石墨波形带则效果更佳。包覆材料：碳钢、SS304、SS316、铜、铝；内衬材料：石墨、石棉、无石棉、陶瓷等；外表粘贴材料：石墨0.4~0.5mm厚的背胶波纹带。
Corrugated jacketed gaskets,the corrugated jacket in creased the gasket resilience.107 cmploys Euroseal Graphite filler completely enclosed by a corrugated etal shell and top washer,If a slight leakage occurs across the inner edge,the concentric corrugations act as labyrinth seals. Sealability can be further improved by the use of an adhesive ribbon of Euroseal Silver Jacket materials mild carbon steel、ss304、ss306、copper、al Soft filler: graphite asbestos non-asbestos ceramic Seailbility improving material(surfaces treatment)BEC graphite 0.4~0.5mm thickness with adhesive backed tap |
| |
|
